100W Laser Cleaning Machine | |
| Laser power | 100W |
| Supply voltage | Single-phase 110V/220V±10%, 50/60Hz AC |
| Pulse frequency range | 1-4000khz |
| Maximum pulse energy | 1.5mJ |
| Pulse width | 2-500ns adjustable |
| Cable length | 3m |
| Laser wavelength | 1070nm |
| Laser operation mode | pulse |
| Cooling system | Air-cooled |
| Beam diameter | 4.0±0.5mm |
| Anti-reflection protection | Yes |
| Programmable power supply | 220ir-cooledV |
| Operating temperature range | 5℃– 40℃ |

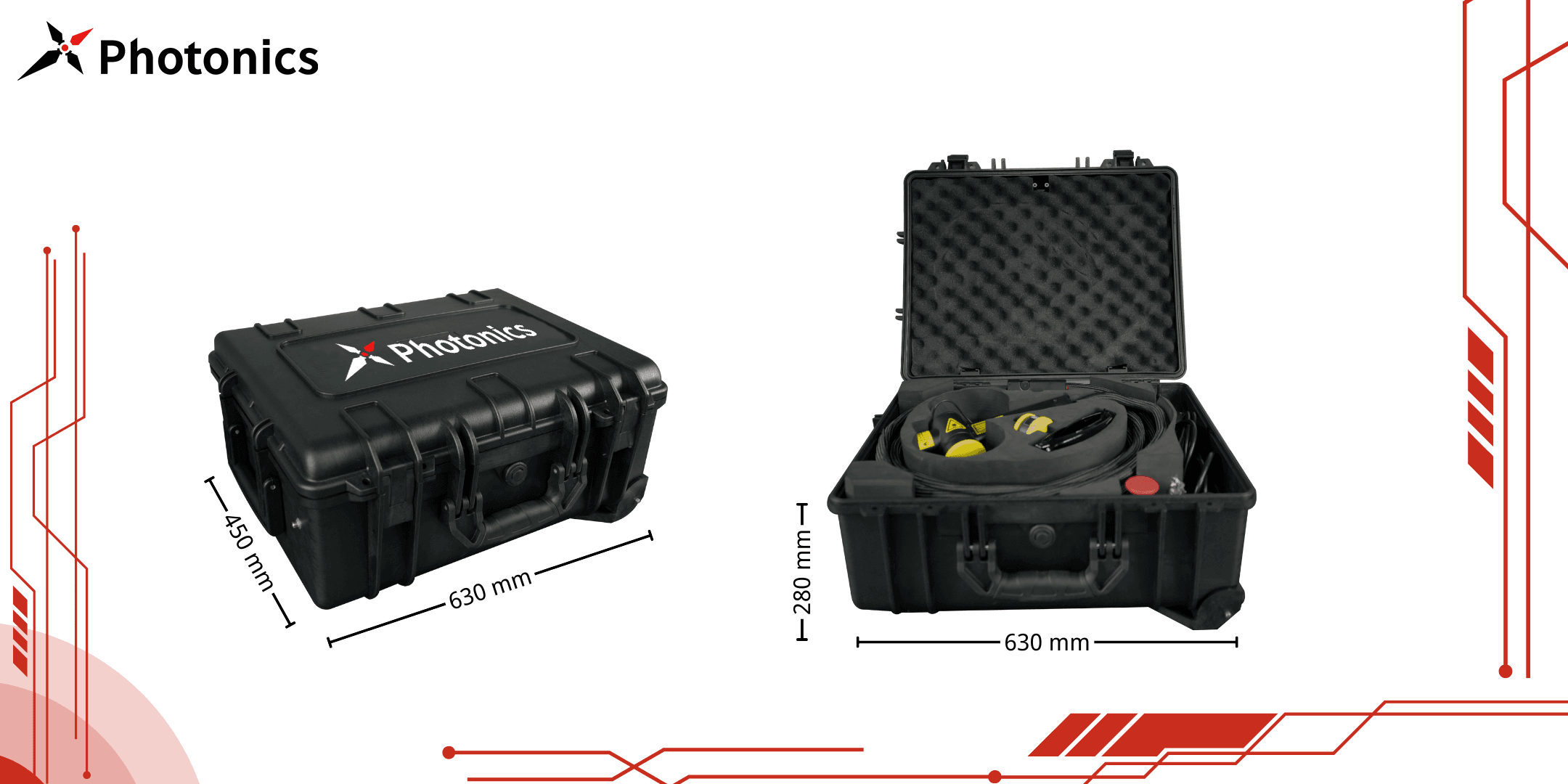

| Machine size | 617mm *469mm * 291mm |
| net weight | 28KG |
| Laser cleaning head parameters | |
| Cleaning head weight | ＜0.9 Kg |
| Frequency of scans | Not less than 300Hz |
| Maximum scan line speed | ≈ 30m/s |
| Scan width | 0-100mm Optional |
| Field lens focal length | 160mm(210mm/254mm/330mm/420mm Optional) |
